Amperage Rating Per Anode Basket Hook:

• 25AMP = 1/8″ X 1″ Double Contact Hook or 3/8″ Square Bar Hook
• 50AMP = 1/4″ X 1″ Double Contact Hook or 1/2″ Square Bar Hook
• 75AMP = 3/8″ X r Double Contact Hook or 5/8″ Square Bar Hook
• 100AMP = 1/2″ X 1″ Double Contact Hook or 3/4″ Square Bar Hook

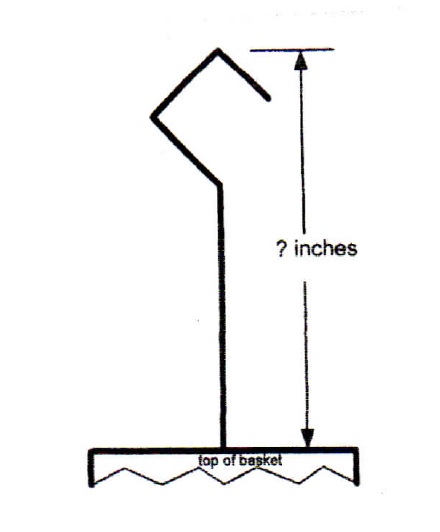

Typical Hook Application:

• Inverted “V” Lift Hooks
• Inverted “U” Hooks
• T Handle Lift Hooks
• Reverse Lift Hooks for easier access in lifting baskets
• Loading Chutes for easier anode loading

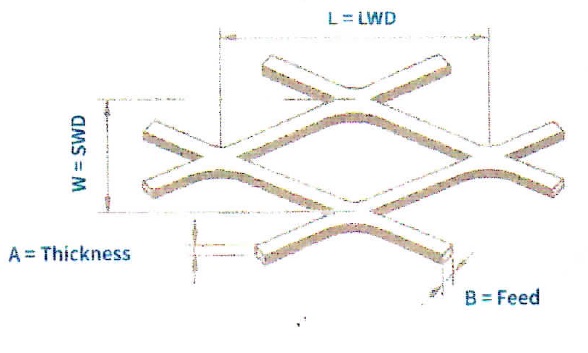

Mesh Selection
Two Mesh Types Available: Perforated or Expanded Sheets

Mini-Mesh Expanded Openings
3/16″ SWDx 1/2″LWD

Standard Mesh Openings
25/64″ X 25/64″
1/4″ X 1/2″
1/2″ X 1/2″
19/32″ X 19/32″
25/32″ X 25/32″
5/16″ X 17/32″

Perforated:
Yi” Diameter on 11/16″ staggered centers
